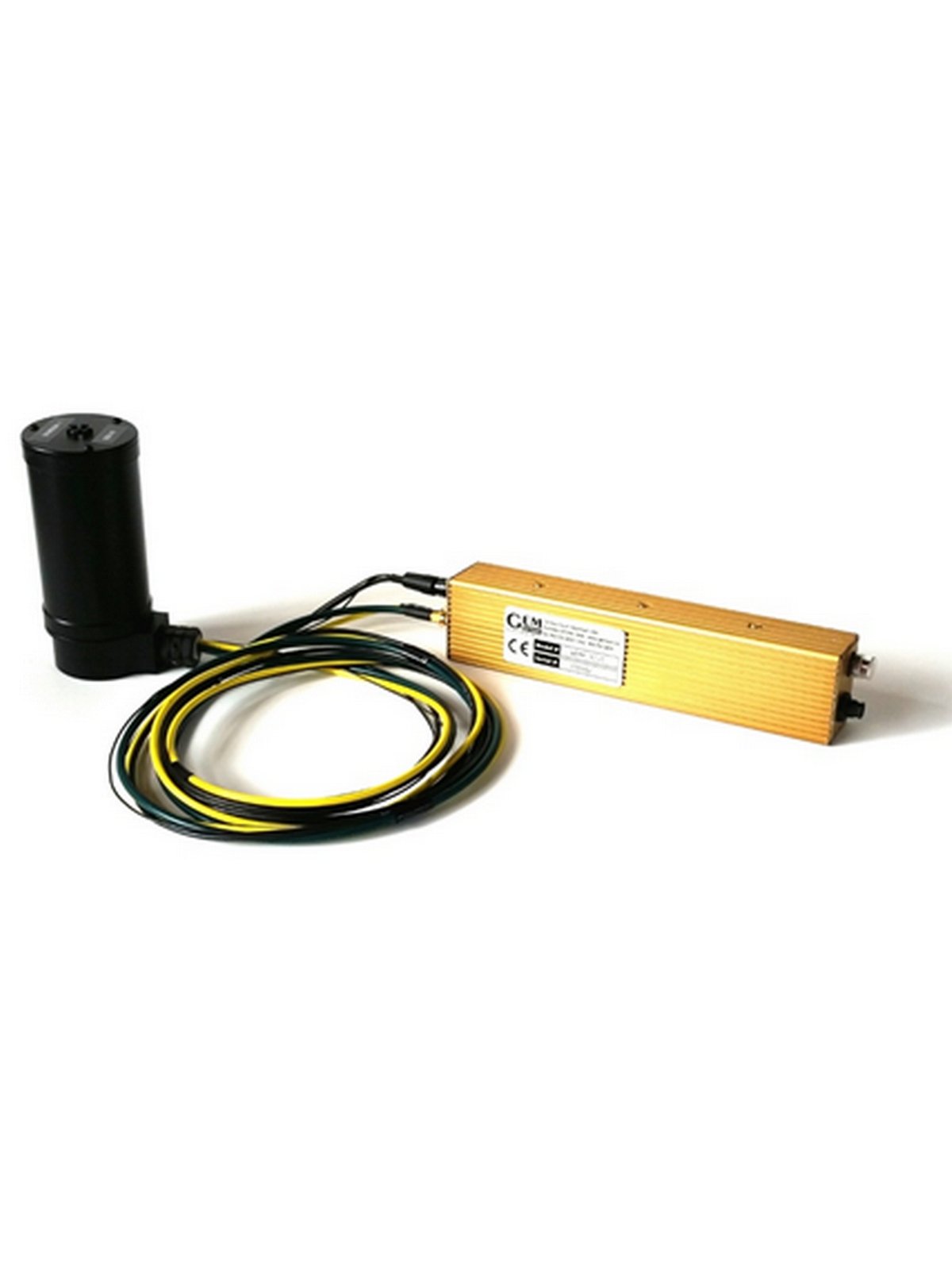

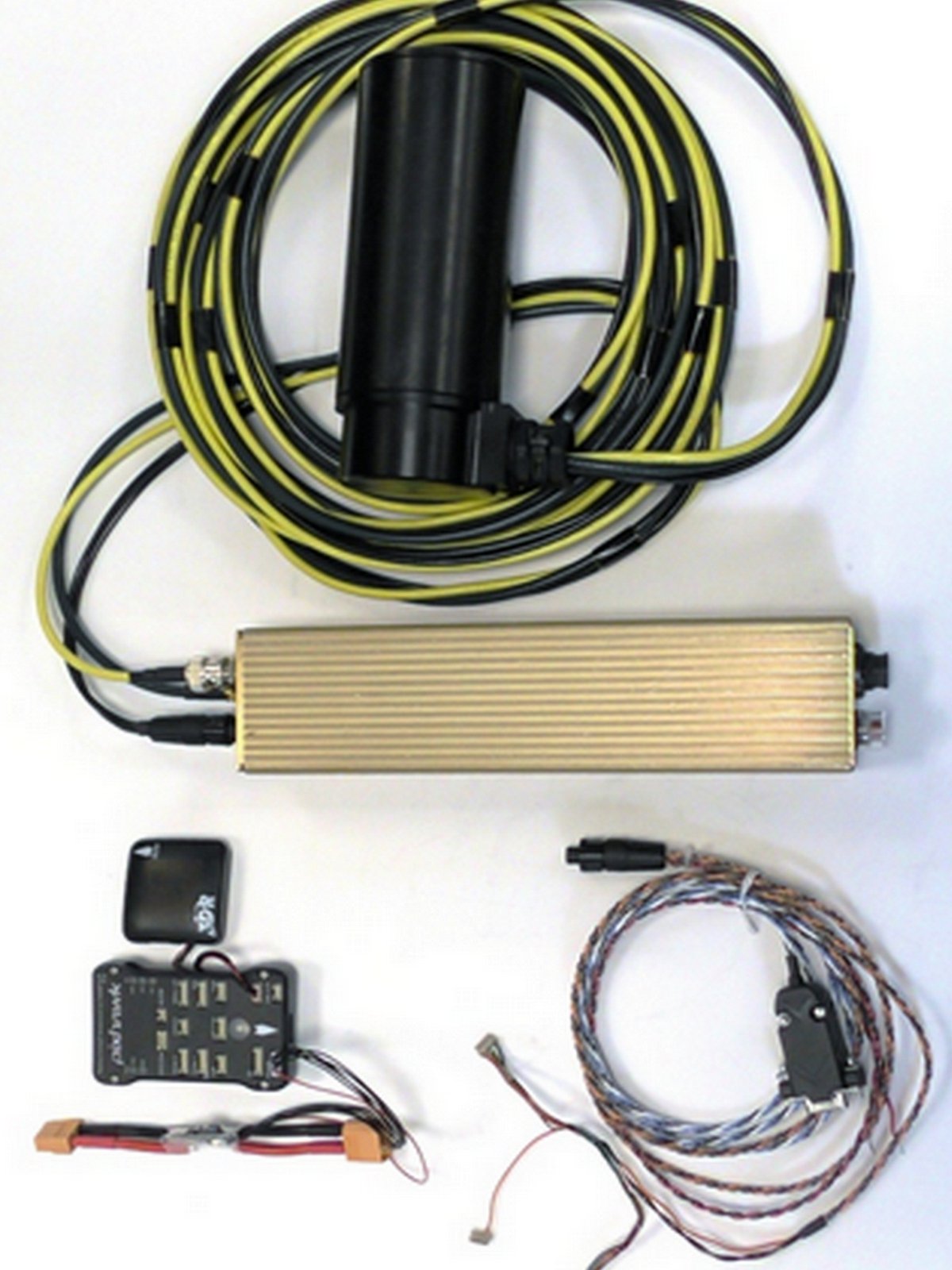

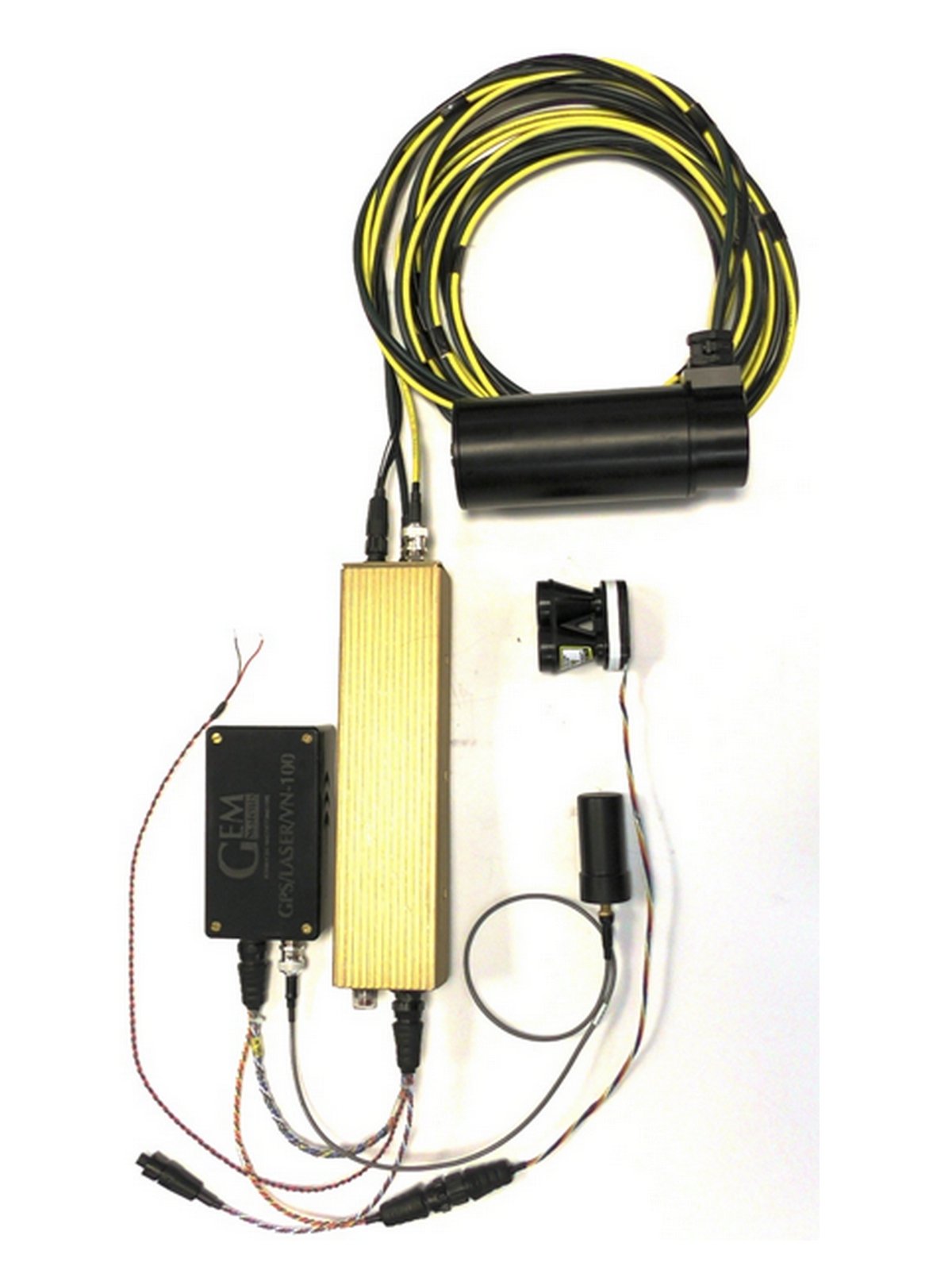

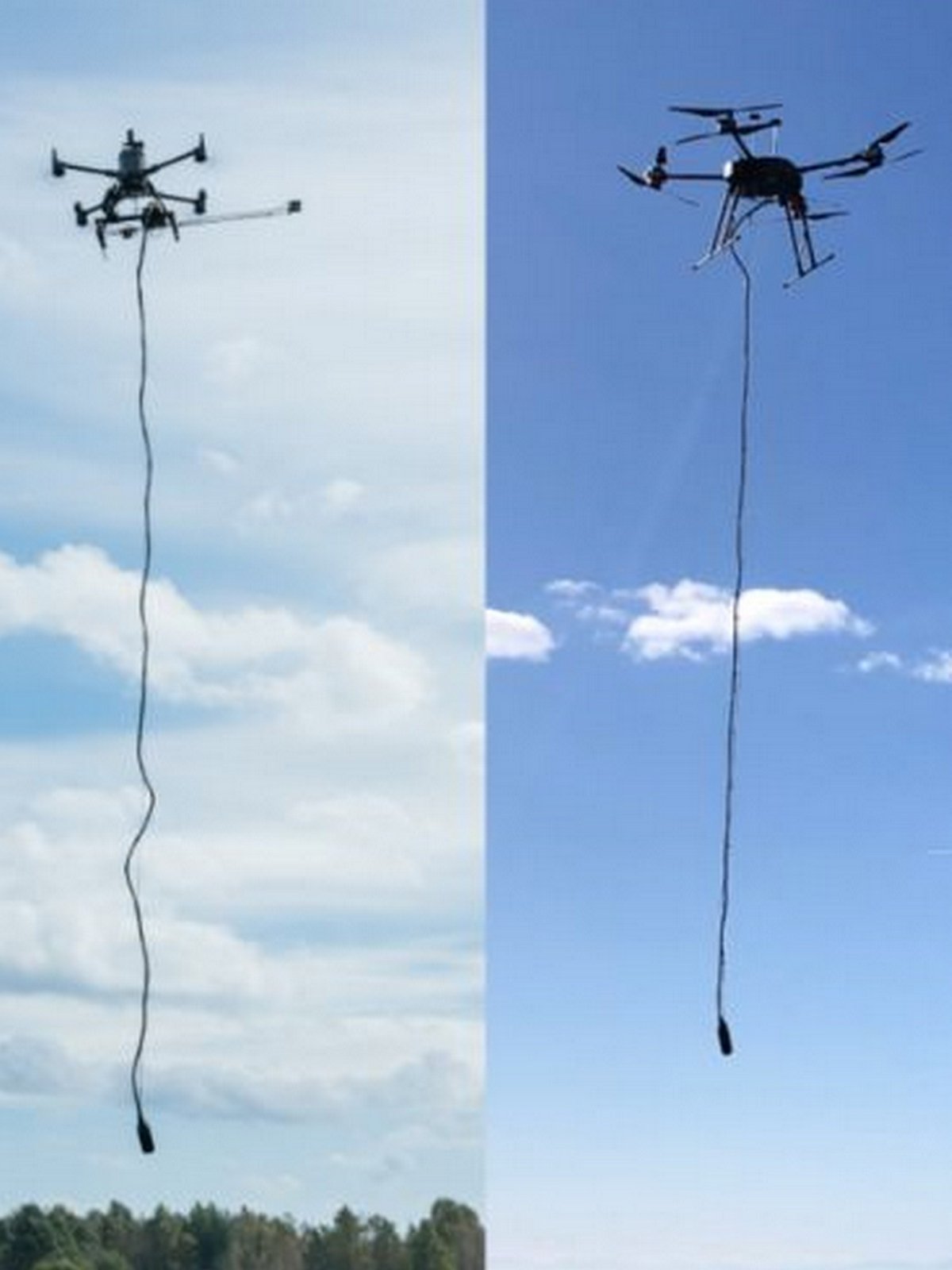

- The GSMP-35U/25U is a lightweight, high-sensitivity potassium magnetometer developed by GEM Systems, specifically designed for integration with Unmanned Aerial Vehicles (UAVs). Weighing less than 1 kilogram, it enables efficient and precise magnetic surveys in various applications.
Technical Specifications:
- Operating Principle: Potassium vapor precession magnetometer, measuring the total magnetic field strength.
- Sensor Dimensions: 161 mm external diameter; weight: 0.43 kg.
- Electronics Box Dimensions: 236 mm x 56 mm x 39 mm; weight: 0.46 kg.
- Sensitivity: 0.0003 nT at 1 Hz.
- Resolution: 0.0001 nT.
- Sampling Rate: Up to 20 samples per second.
- Operating Temperature Range: -20°C to 50°C.
- Mineral Exploration: Identifying and mapping magnetic anomalies associated with mineral deposits.
- Geophysical Surveys: Studying geological structures and formations through detailed magnetic measurements.
- Archaeological Investigations: Detecting buried artifacts and structures by analyzing magnetic signatures.
- Environmental Assessments: Locating subsurface features that may impact environmental studies.
- Unexploded Ordnance (UXO) Detection: Identifying potential UXO sites for safety evaluations and remediation efforts.
- GSMP-35U: Standard model offering high sensitivity for general-purpose magnetic surveys.
- GSMP-25U: Alternative configuration with similar capabilities, providing flexibility based on specific survey requirements.
